Description

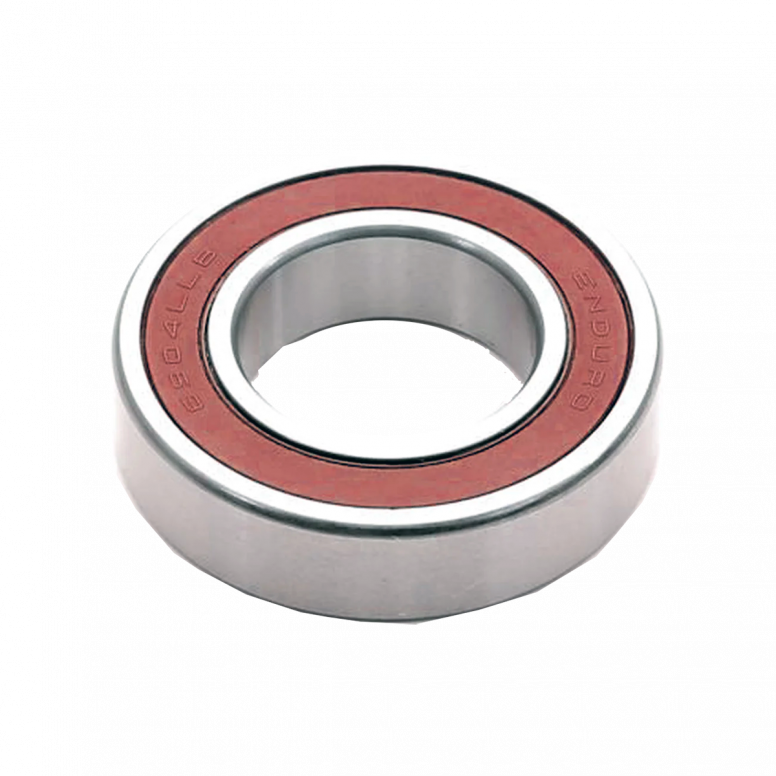

6904 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing - 20mm x 37mm x 9mm -
Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom-ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high-pressure grease inside.
This bearing has commonly been used as a suspension pivot bearing by Forbidden Bicycles.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deep-groove raceso accommodate the largest balls possible. All of our standard bearings featureual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 1356lbf / 6.03kN
Weight - 42g
Dimensions
| Dimension |
Value |
|
Internal Diameter (ID)
|
20.00
|
|
Outside Diameter (OD)
|
37.00
|
|
Width (W)
|
9.00
|
Product Information
| Property |
Value |
|
Brand
|
Enduro
|
|
Sealing Option
|
LLU
|
|
Unit of Measure
|
Metric
|
